X6 Clamp-on Type Ultrasonic Flowmeter
Product description

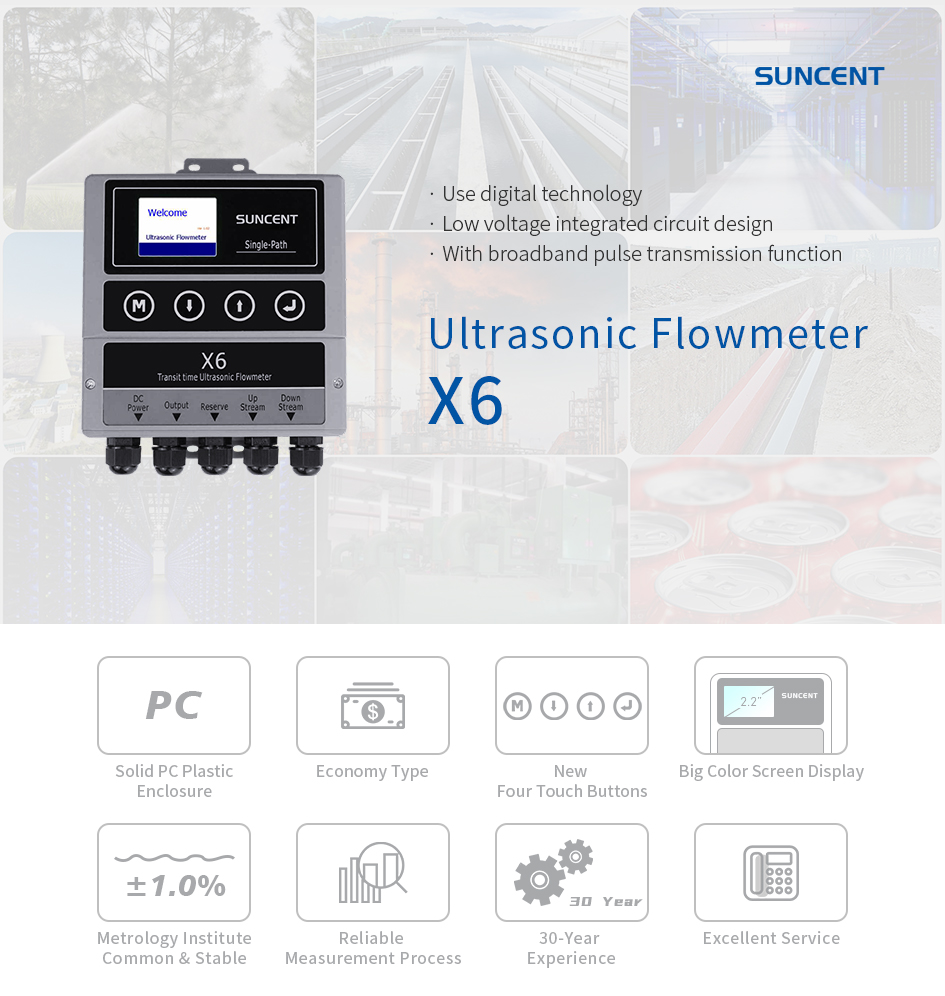

SUNCENT-X6 is the best economical clamp-on type ultrasonic flowmeter.

· Using digital technology and low-voltage integrated circuit design, with broadband pulse transmission function
· Mainly used in the application of full pipes and single clean liquid. It has good tolerance to liquids containing a small amount of bubbles or suspended solids in most industrial environments, ensuring the stability of the measurement
· Adopting high-level integrated circuit design and multi-layer PCB board application, reducing the connection between multiple PCB boards and making it more reliable

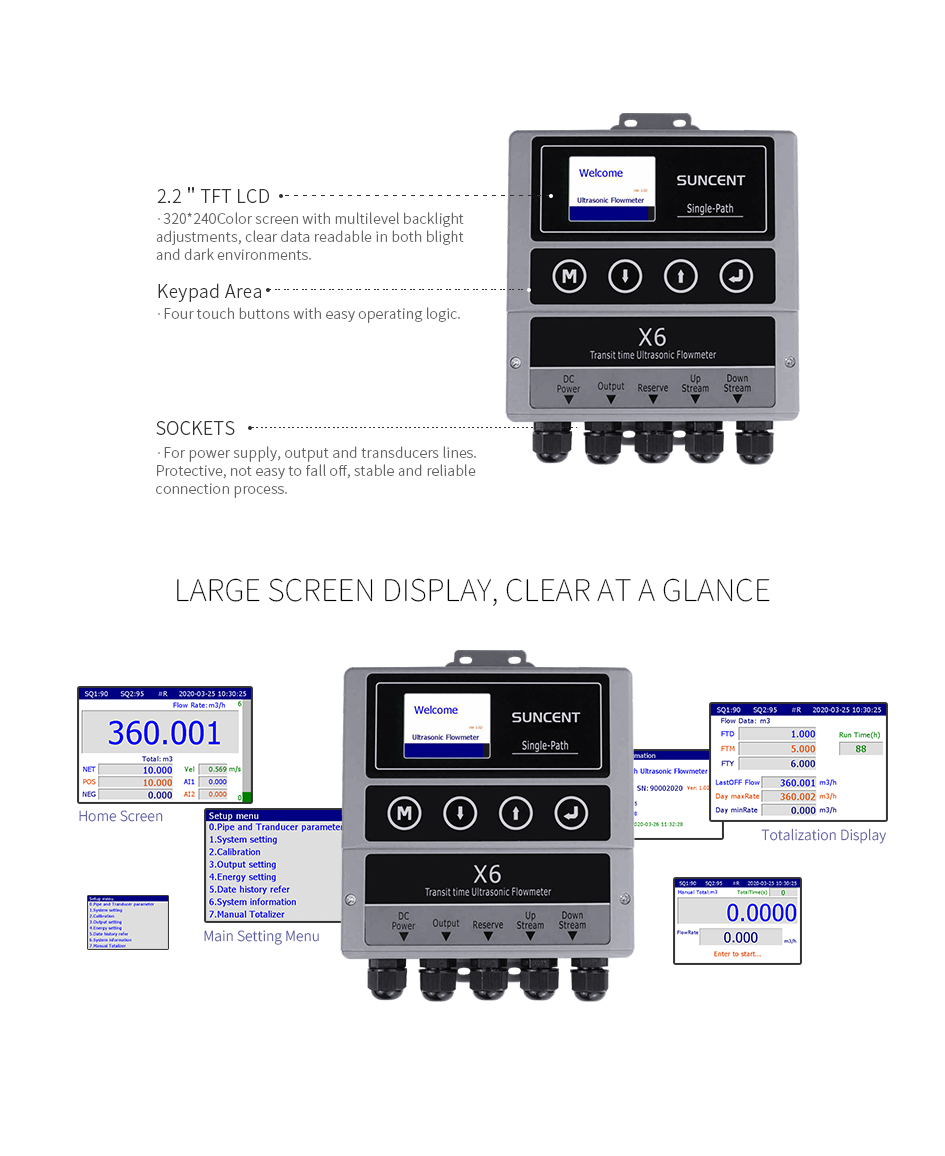

· With a friendly menu interface, the flowmeter is easy to use. You can easily check the daily, monthly and annual total traffic. Parallel operation of positive, negative and net flow

Product Details

Specifications

Product name SUNCENT-X6 Clamp-on Type Ultrasonic Flowmeter
Flow range
0~±12m/s (0~±40 ft/s)
Accuracy
± 1.0%
Repeatability
0.2%
Pipe size
25mm to 2000mm (1" to 80")
Pipe material
stainless steel / carbon steel / copper / zinc-alloy / plastic(PVC, PVDF, PPR, PPH, HDPE, etc) etc.
Analog output
4~20mA (max load 750Ω)
Communication
RS485,BACnec(optional)
Power supply
24 to 36 VDC
Cable length
10.0m(standard)
