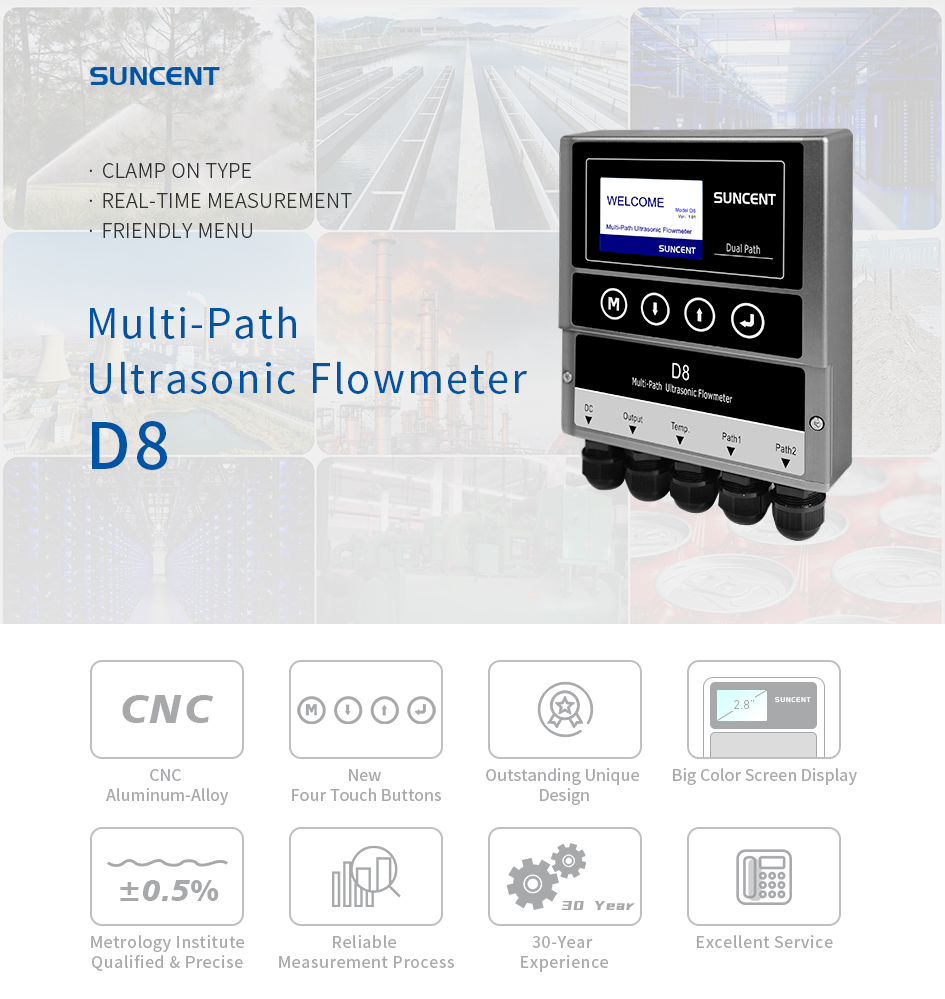

D8 is an ultrasonic flowmeter designed based on the principle of time difference measurement

· Using digital technology and low-voltage integrated circuit design, with broadband pulse transmission function
· Mainly used in the application of full pipes and single clean liquid. It has good tolerance to liquids containing a small amount of bubbles or suspended solids in most industrial environments, ensuring the stability of the measurement
· Adopting high-level integrated circuit design and multi-layer PCB board application, reducing the connection between multiple PCB boards and making it more reliable

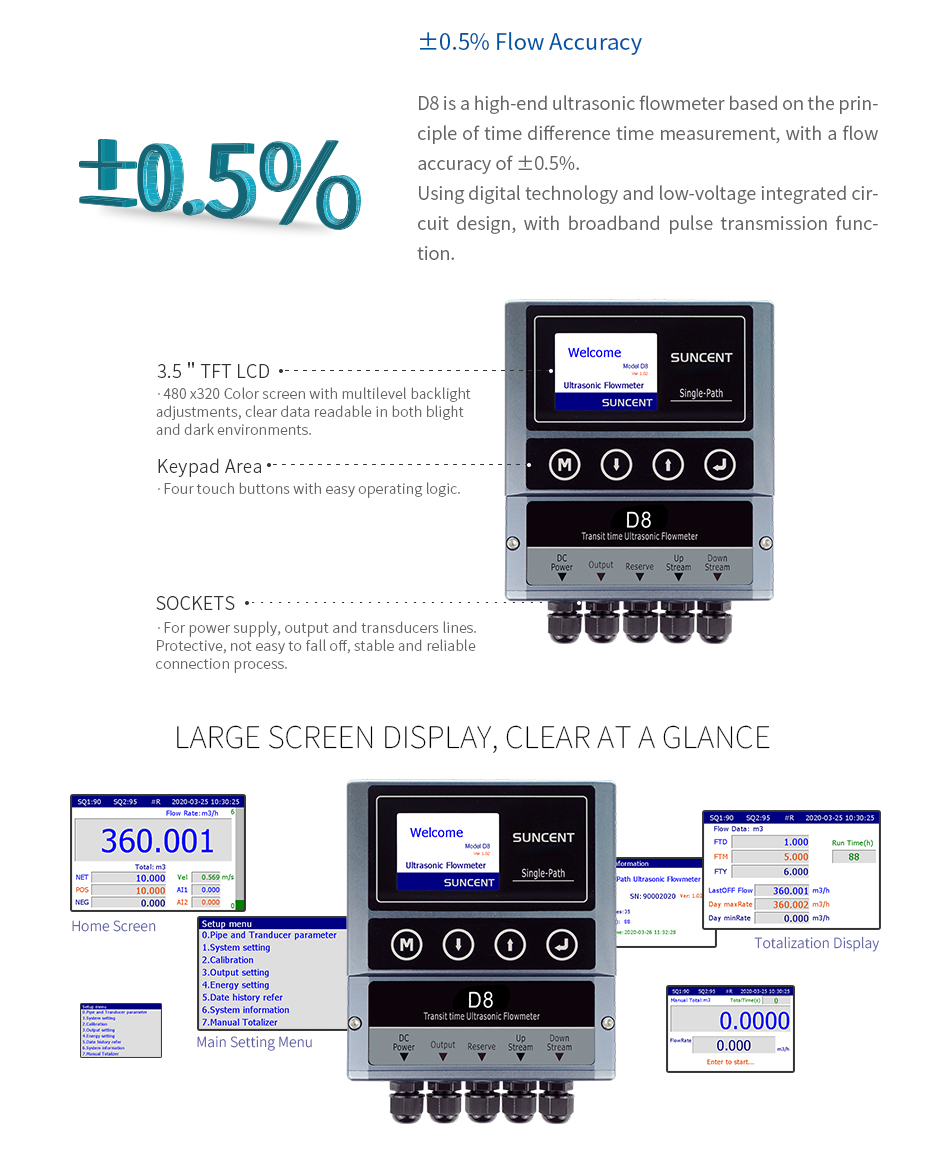

· With a friendly menu interface, the flowmeter is easy to use. You can easily check the daily, monthly and annual total traffic. Parallel operation of positive, negative and net flow

Model: D8
Flow range: 0～±40 ft/s (0～±12 m/s)
Accuracy: ±0.5%
Repeatability: 0.15%
Pipe size: 200mm to 5000mm(8" to 200")
Pipe material: Pipe material: stainless steel / carbon steel / copper / zinc-alloy / plastic(PVC, PVDF, PPR, PPH, HDPE, etc) etc.
Analog output: 4～20mA (max load 750Ω)
Communication: RS485
Power supply: 24 to 36 VDC

Cable length: 10.0m(standard)
