X3 Cleaning Machine Fix Bucked Ultrasonic Flowmeter
Product description

SUNCENT-X3 is a flow meter specially designed for ultrasonic cleaning machines

1.Only takes 59 seconds to complete the installation and start the measurement
2.No additional changes to the pipeline, installation and measurement can be completed according to the operating instructions.
3.It can be installed and used without stopping production, without any pipeline modification, and without pressure loss

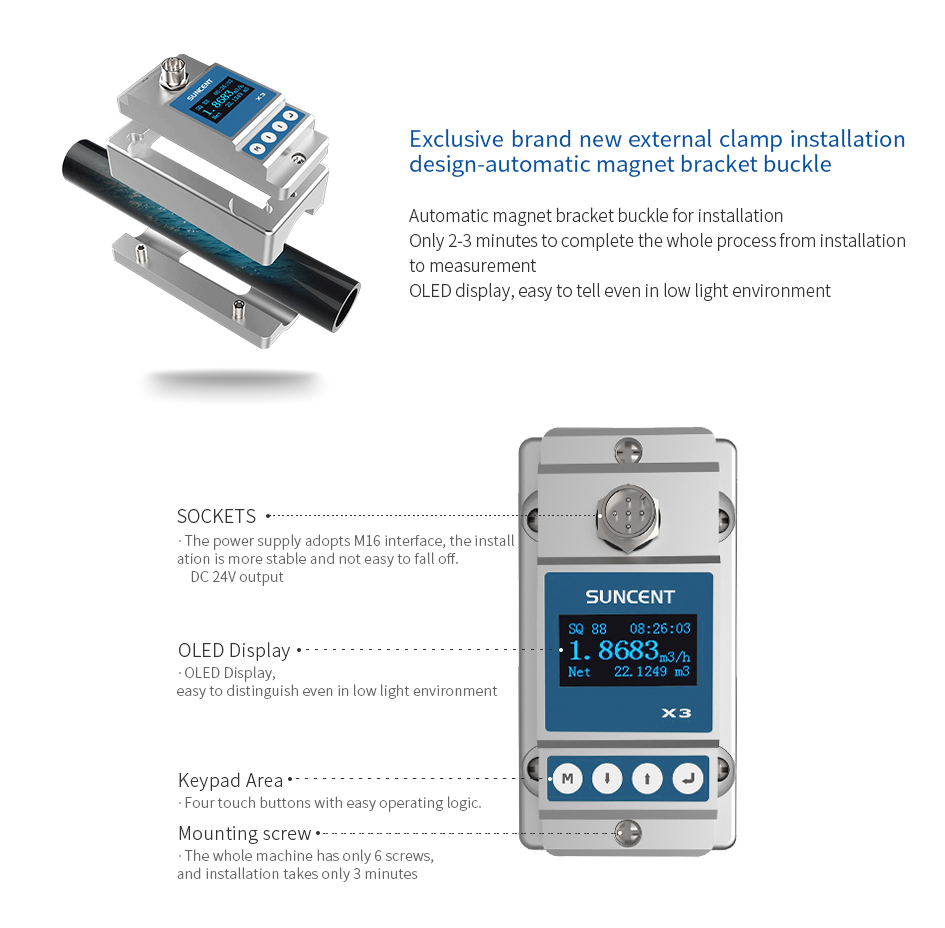

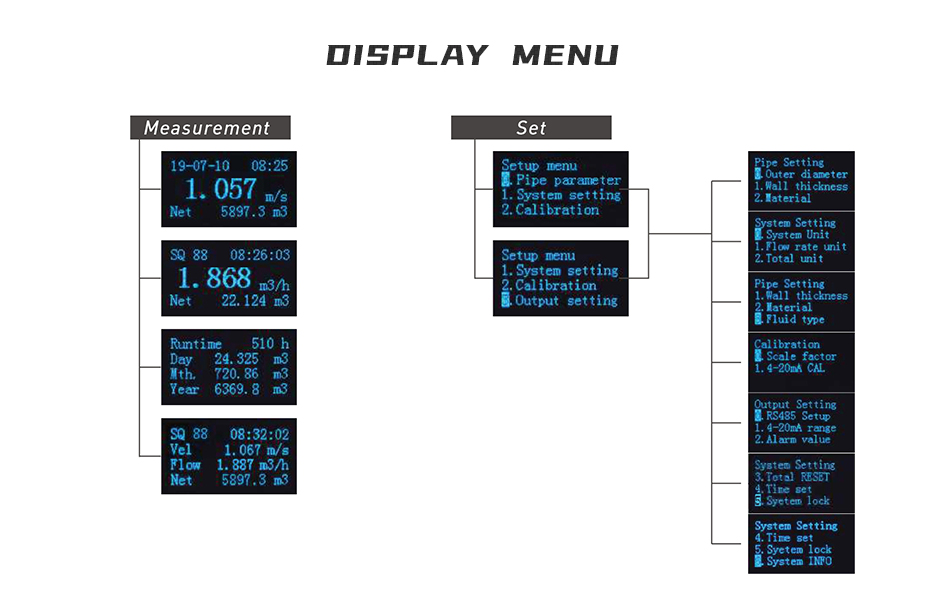

4.OLED display (128x 64px), even in the dark environment has the best display
5.Suitable for a variety of pipelines: stainless steel pipes, carbon steel pipes, copper pipes, PVC, PVDF, PPR, PPH, HDPE, etc.


Product Details

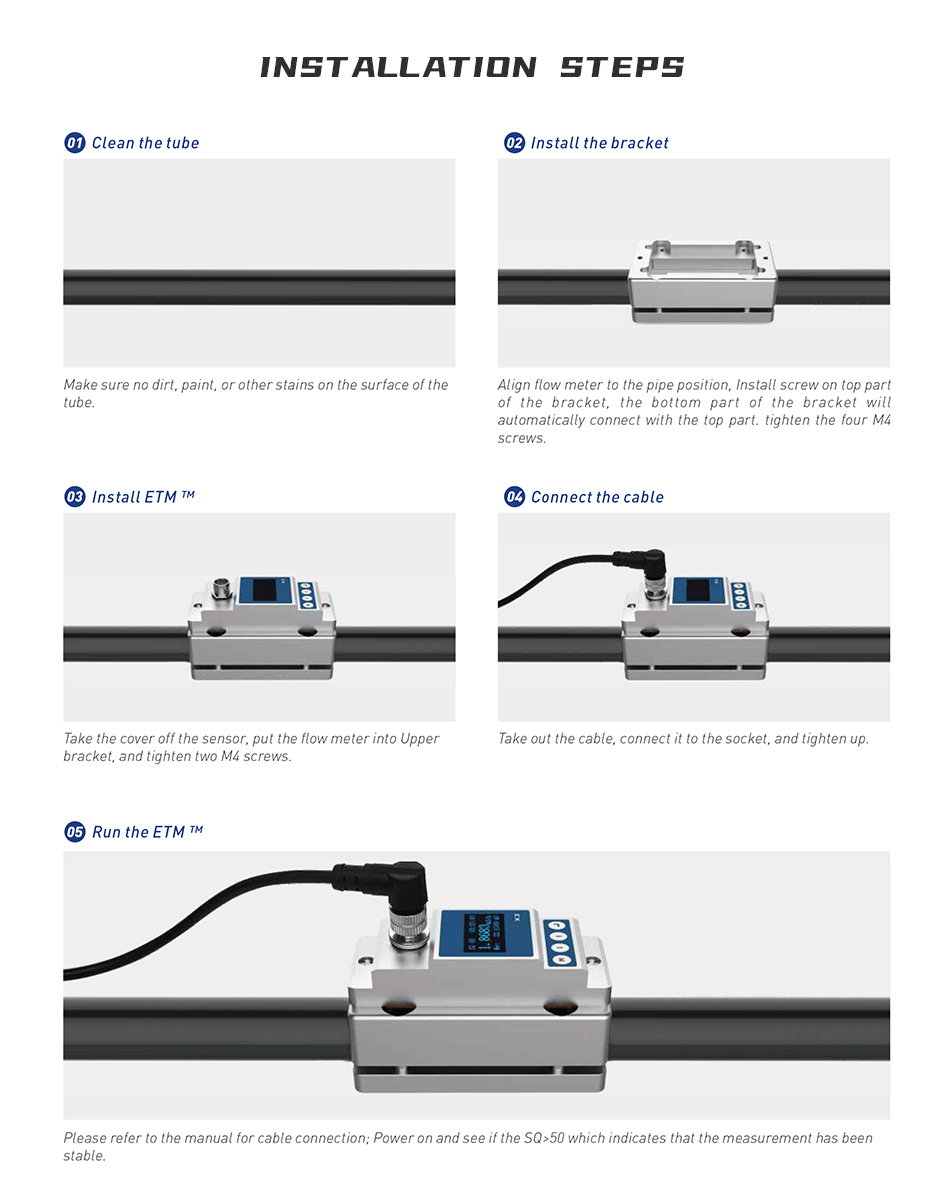

Product introduction & installation


Specifications

Product name X3 Cleaning Machine Fixed Bucked Ultrasonic Flowmeter
Flow range
0.1 m/s ~ 5.0 m/s
Accuracy
± 1.0%
Repeatability
0.8%

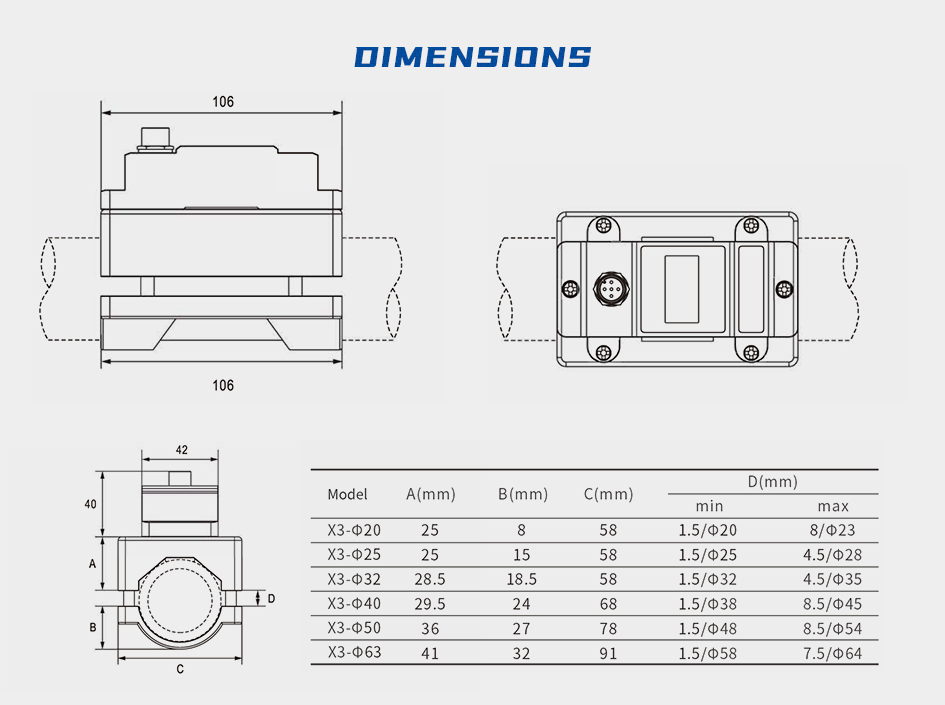

Pipe size
 Φ9.53(DN8), Φ12.7, Φ15(DN10), Φ20(DN15), Φ25(DN20), Φ32(DN25), Φ40(DN32), Φ50(DN40), Φ63(DN50), Φ75(DN60), Φ90(DN80)
Pipe material
stainless steel / carbon steel / copper / zinc-alloy / PVC, PVDF, PPR, PPH, HDPE, etc.
Analog output
4-20mA and RS485
Communication
RS485
Power supply
9-36VDC
Cable length
1.8m
