X8 0.5-Level Inline Type Ultrasonic Flowmeter
Product description

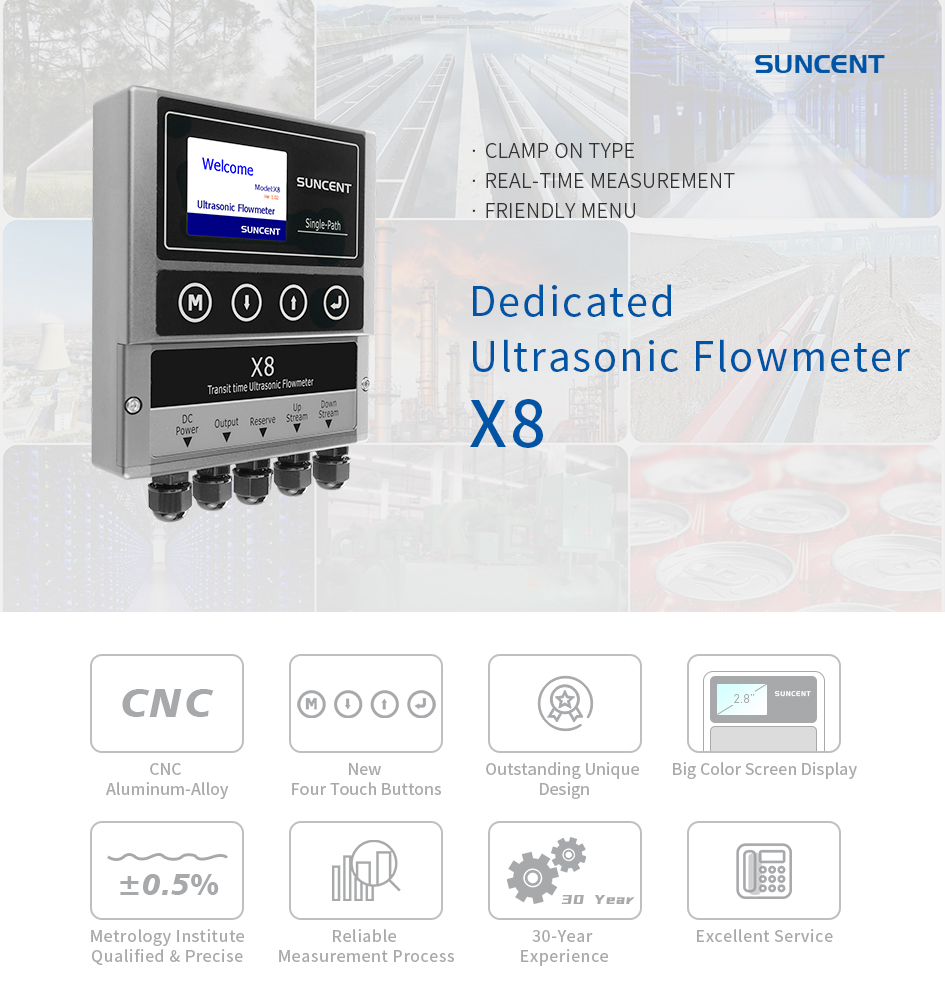

SUNCENT-X8 is the best single channel inline type ultrasonic flowmeter with 0.5% flow accuracy.

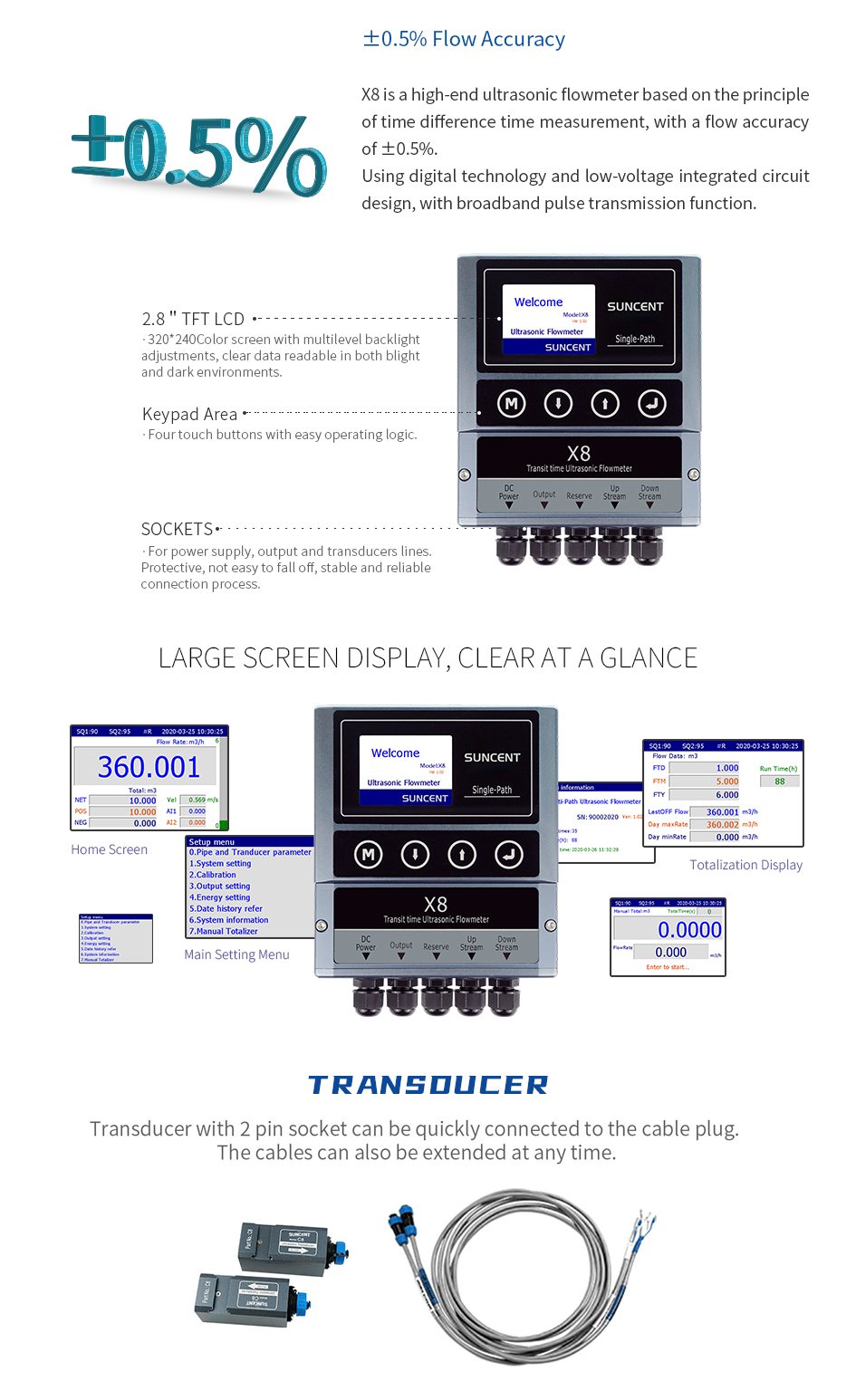

· Using digital technology and low-voltage integrated circuit design, with broadband pulse transmission function
· Mainly used for applications with full pipelines and single clean liquids. It has good tolerance to liquids containing a small amount of bubbles or suspended solids in most industrial environments, ensuring the stability of the measurement
· Adopting high-level integrated circuit design and multi-layer PCB board application, reducing the connection between multiple PCB boards and making it more reliable
· With a friendly menu interface, the flowmeter is easy to use. You can easily check the daily, monthly and yearly total traffic. Parallel operation of positive, negative and net flow

Product introduction & installation

Product Details

Model: SUNCENT-X8 0.5-Level Single Channel Inline Type Ultrasonic Flow Meter

Flow range: 0±12m/s (0±40 ft/s)

Accuracy: ±0.5%
Repeatability: 0.15%

Pipe size: 25mm to 5000mm (1" to 200")

Pipe material: stainless steel / carbon steel / copper / zinc-alloy / plastic(PVC, PVDF, PPR, PPH, HDPE, etc) etc.

Analog output: 420mA (max load 750Ω)

Communication: RS485,BACnec(customed)

Power supply: 12 to 36 VDC

Cable length: 10.0m(standard)
