X3 Slim Pipe Dedicated Fixed Buckled Ultrasonic Flowmeter
Product description

X3 has unique advantages by virtue of its patented innovation in fluid measurement in fixed small diameter pipes

· Exclusive new installation design-automatic magnet bracket buckle, it only takes 2-3 minutes to complete the whole process from installation to measurement
· No additional changes to the pipeline, no professional knowledge, installation and measurement can be completed according to the operating instructions.
· No moving parts, no pressure loss, can be installed and used without stopping production
· OLED display, easy to distinguish even in low light environment

· Suitable for a variety of pipelines: stainless steel pipe, carbon steel pipe, copper pipe, plastic pipe (PVC, PVDF, PPR, PPH, HDPE, etc.)


Product introduction & installation


Product Details

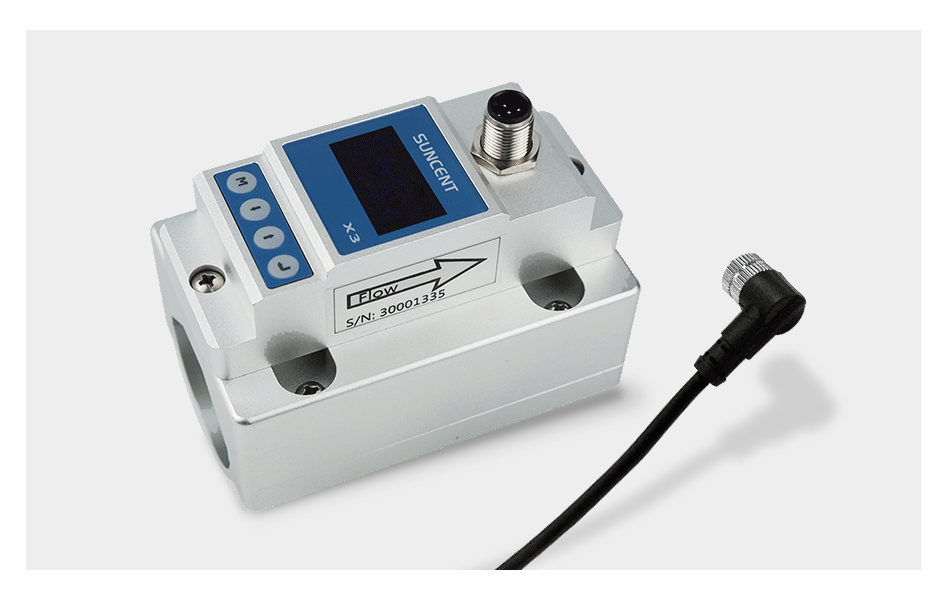

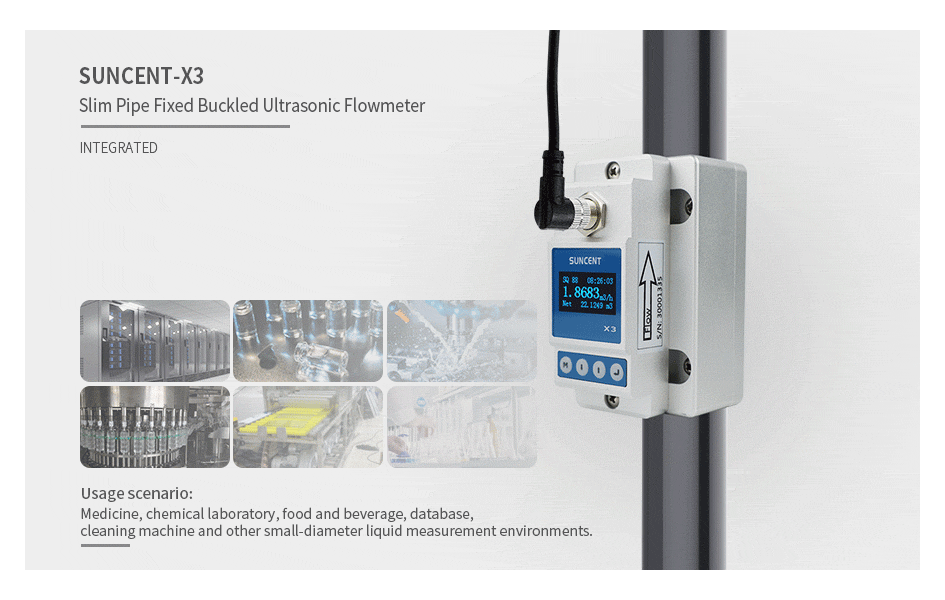

X3 small tube clamp type ultrasonic flowmeter

In the process of flow measurement and production, X3 has high-efficiency and stable measurement capability, and supports pipes of various materials and sizes, such as stainless steel pipes, carbon steel pipes, copper pipes, plastic pipes (PVC, PVDF, PPR, PPH, HDPE, etc.), and X3 can also meet different liquid measurements, such as acid, chemical solvents, alcohol, beverages, water and other clean liquids.
X3 is widely used in medicine, chemical laboratory, food and beverage, database, cleaning machine and other small-diameter liquid measurement environments.


Supporting piping:

Model X3-Φ9.53 X3-Φ12.7 X3-Φ15 X3-Φ20 X3-Φ25 X3-Φ32 X3-Φ40 X3-Φ50 X3-Φ63 X3-Φ75 X3-Φ90
Pipe outer diameter Φ9.53 Φ12.7 Φ15 Φ20 Φ25 Φ32 Φ40 Φ50 Φ63 Φ75 Φ90
Pipe inner diameter 8mm -- 10mm 15mm 20mm 25mm 32mm 40mm 50mm 65mm 80mm
Nominal name DN8 -- DN10 DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80
Popular name 1/4" -- 3/8" 1/2" 2/3" 1" 1.2" 1.5" 2" 2.5" 3"

Main engine weight:

Weight
(KG)
X3-Φ9.53 X3-Φ12.7 X3-Φ15 X3-Φ20 X3-Φ25 X3-Φ32 X3-Φ40 X3-Φ50 X3-Φ63 X3-Φ75 X3-Φ90
0.91 0.90 0.90 0.84 0.84 0.82 0.88 0.98 1.43 1.52 1.95

X3 small tube clamp type ultrasonic flowmeter

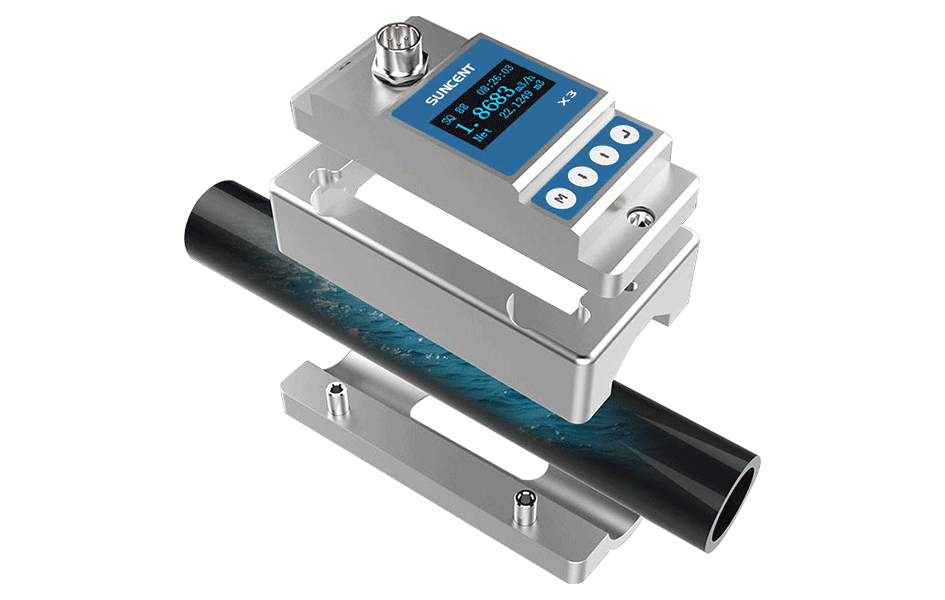

Exclusive new external clip-on installation design-automatic magnet bracket buckle
The whole process from installation to measurement can be completed in only 2-3 minutes, without additional pipeline modification and professional knowledge, and the installation and measurement can be completed according to the operation guide. No moving parts, no pressure loss, and can be installed without stopping production.

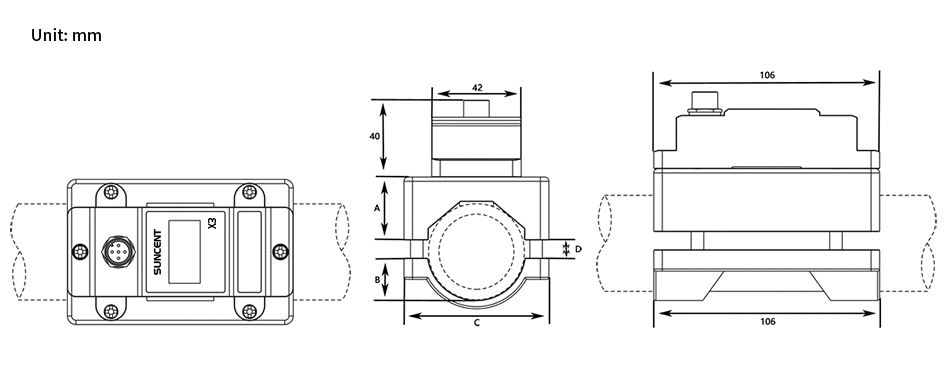

Installation specifications and dimensions:

X3 small tube clamp type ultrasonic flowmeter
Model A
(mm)
B
(mm)
C
(mm)
D(mm)
min min
X3-Φ9.53 -- 25.5 42 0/Φ9.5 1/Φ10.4
X3-Φ12.7 -- 26.8 42 0/Φ12 1/Φ13.1
X3-Φ15 -- 29 42 0/Φ14.5 1/Φ15.4
X3-Φ20 25 10 58 1/Φ16.5 7.5/Φ23
X3-Φ25 25 15 58 1/Φ25 4/Φ28
X3-Φ32 28.5 18.5 58 1/Φ32 4/Φ35
X3-Φ40 29.5 24 68 1/Φ38 9/Φ45
X3-Φ50 36 27 78 1/Φ48 7/Φ54
X3-Φ63 41 32 91 1.5/Φ58 8.5/Φ64
X3-Φ75 46.5 40 105 1/Φ72 7/Φ78
X3-Φ90 51.5 43 119 1/Φ80 13/Φ92

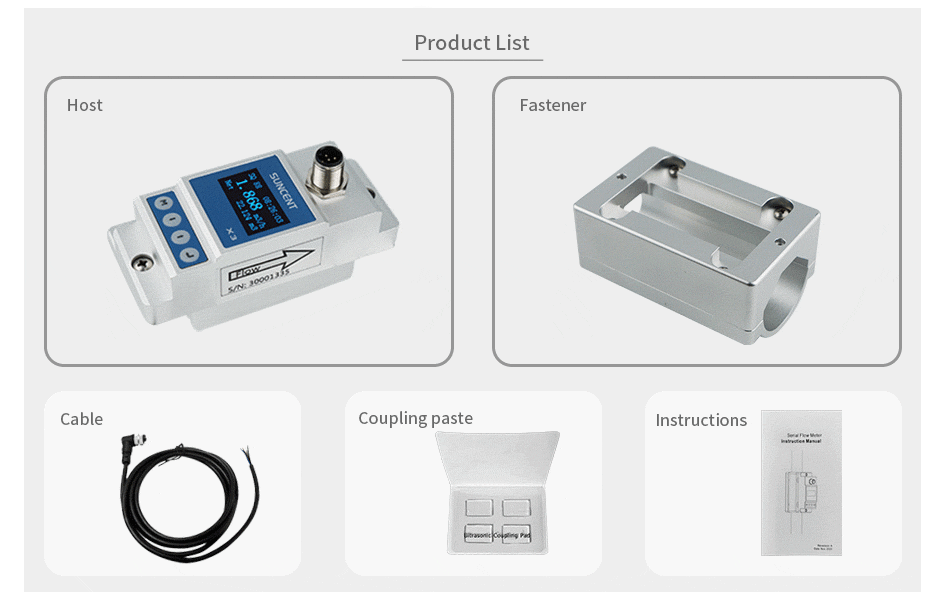

产品展示:

X3 small tube clamp type ultrasonic flowmeter
X3 small tube clamp type ultrasonic flowmeter


Detailed product specifications:

Product name

SUNCENT-X3 special ultrasonic flowmeter for clamped small tube

Product model X3
Flow range 0.1m/s~5.0m/s
Accuracy ±1.0%
Repeatability 0.8%
Pipe size φ 9.53 ~ φ 90, with 10 specifications in total
Data storage Daily, monthly, and Annual. Flow Totalizer
Analog output 4-20mA, Maximum load: 600Ω
Alarm output OCT, Upper and lower limit alarm function (optional)
Communication RS485, Modbus and BACnet(optional)
Power supply 24V DC
Cable length 1.8m
Keypad Four light touch buttons
Display OLEO 128*64 display screen
Units
Metric and imperial units are available, Cubic Meters(m³),
Liters(L),USA Gallons(GAL)/hour, /min, Default unit setting: m³/h
Totalizer Six bit digit
Piper material Stainless steel pipe, carbon steel pipe, copper pipe, plastic pipe
Case material Aluminum alloy
Environment temp. 0℃~50℃
Medium temp. 0℃~50℃
Humidity 0-95% relative humidity, without condensation
IP Grade IP65

Download of product information:

X3 English Edition Album(Click to view)
