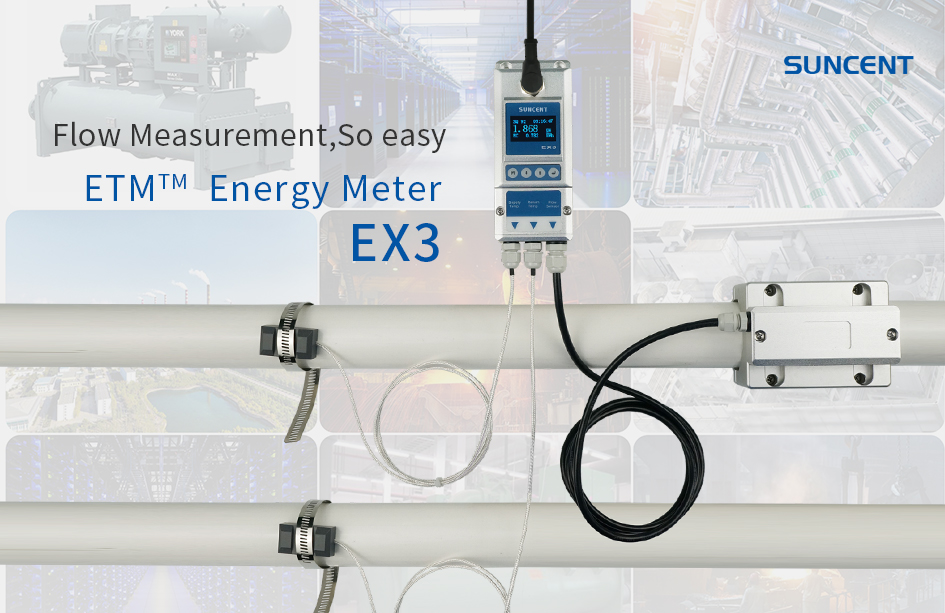

EX3 Fixed Pipe Energy Meter
Product description

EX3 is an energy meter designed for central air conditioning systems with two-way measurement of heat and cold.

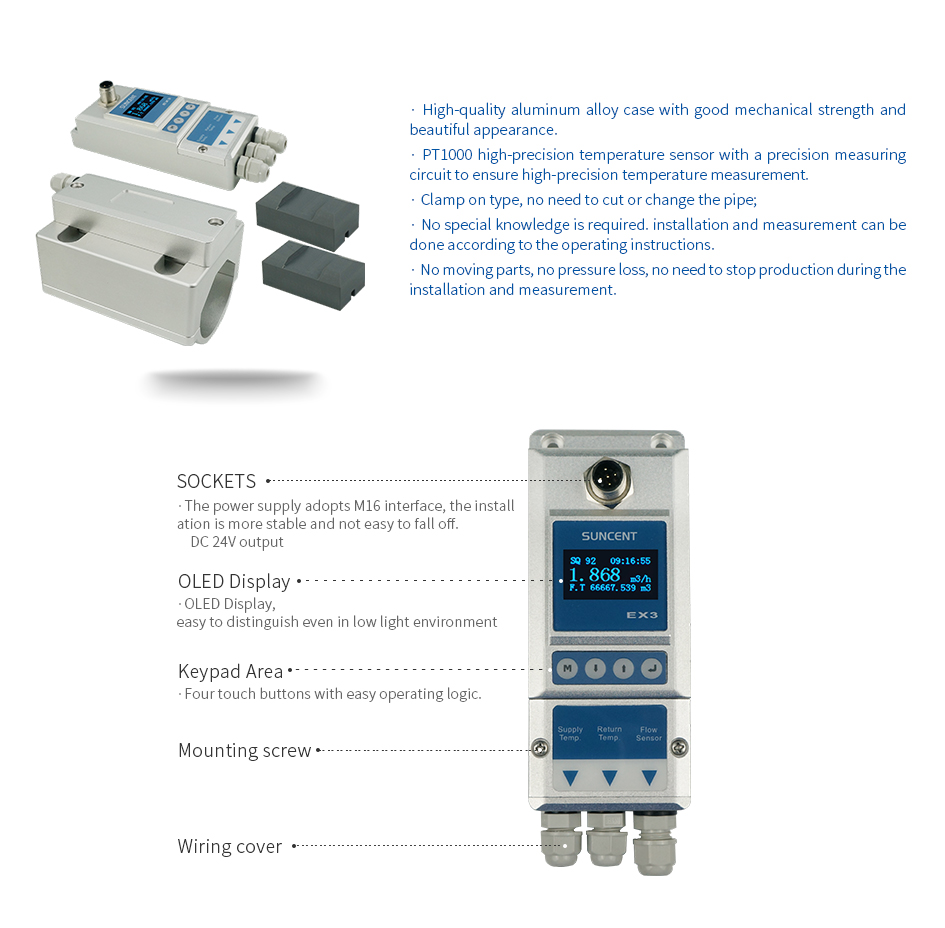

· The shell is made of high-quality aluminum alloy, with good mechanical strength and beautiful appearance
· The temperature sensor uses a dedicated PT1000 high-precision platinum resistance, and is equipped with a precise measurement circuit to ensure high-precision temperature measurement

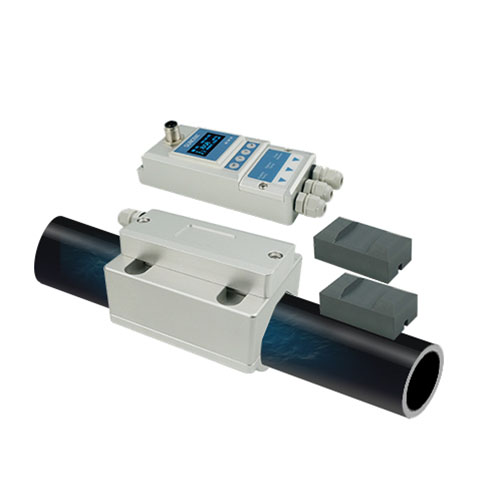

· The flowmeter is stuck on the outside of the pipe, no need to change the pipe

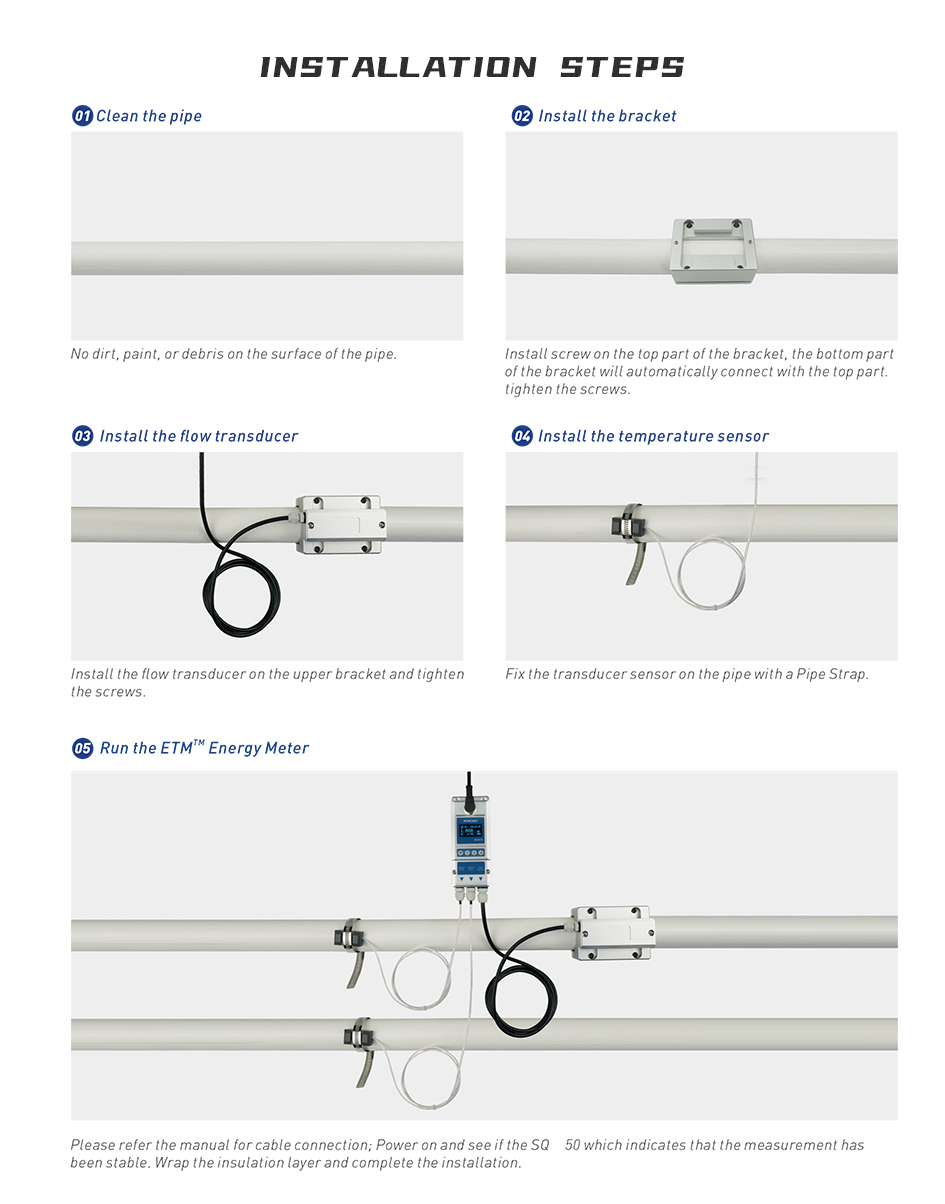

· No need for professional knowledge, installation and measurement can be completed according to the operation guide
· No moving parts, no pressure loss, can be installed and used without stopping production

Product Details

Model: EX3
Flow range: 0.1 m/s ~ 5.0 m/s
Accuracy: ±1.0%
Repeatability: 0.8%

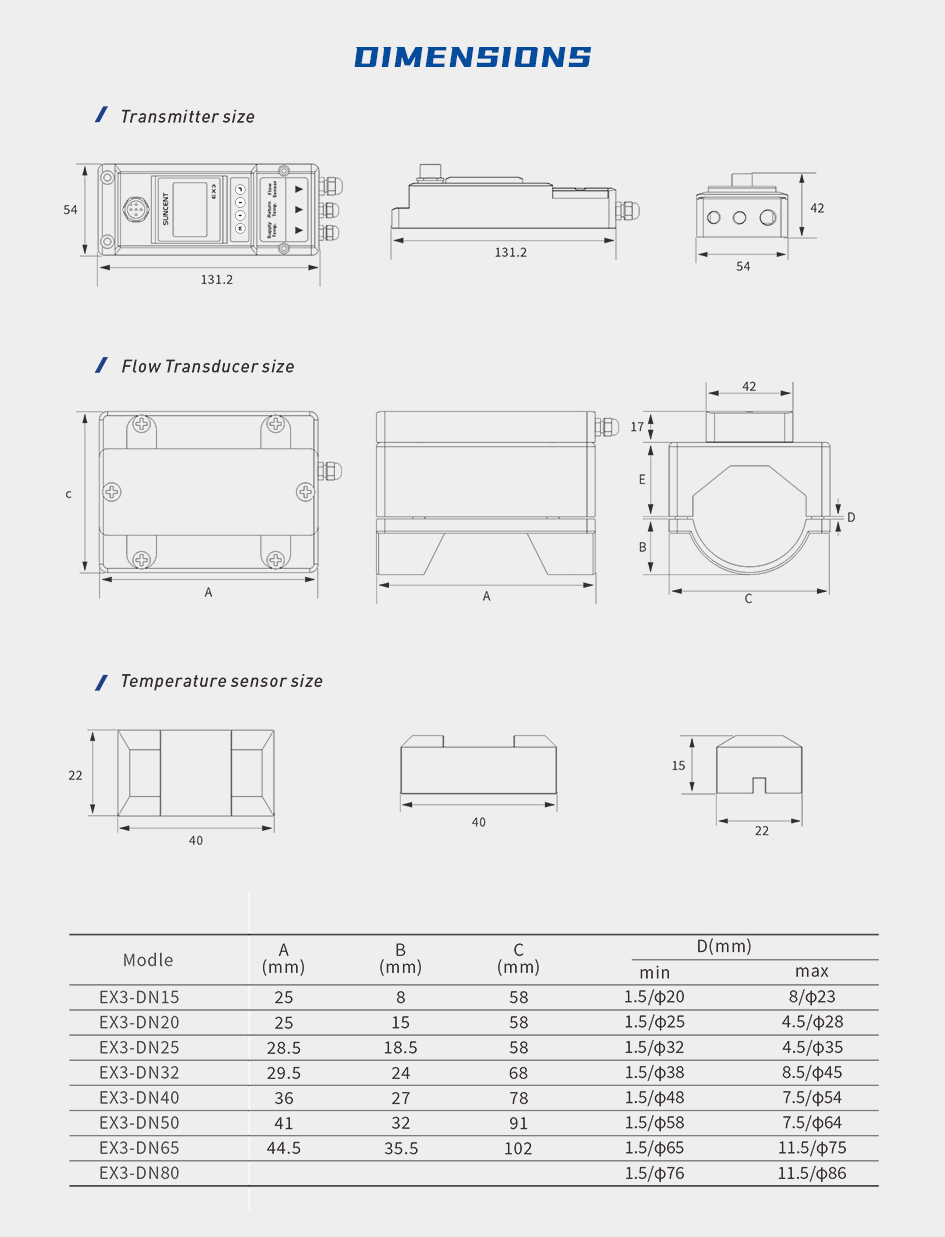

Pipe size: DN15/ DN20/ DN25/  DN32/ DN40/ DN50/ DN65/ DN80
Data storage: daily, monthly and annual
Analog output: 4~20mA, Maximum load: 600Ω
Alarm output: OCT, Upper and lower limit alarm function (optional)
Communication: RS485, (MODBUS or MeterBUS optional)
Power supply: 24V DC
Cable length: 1.8m
Keypad: Four ful-touch buttons

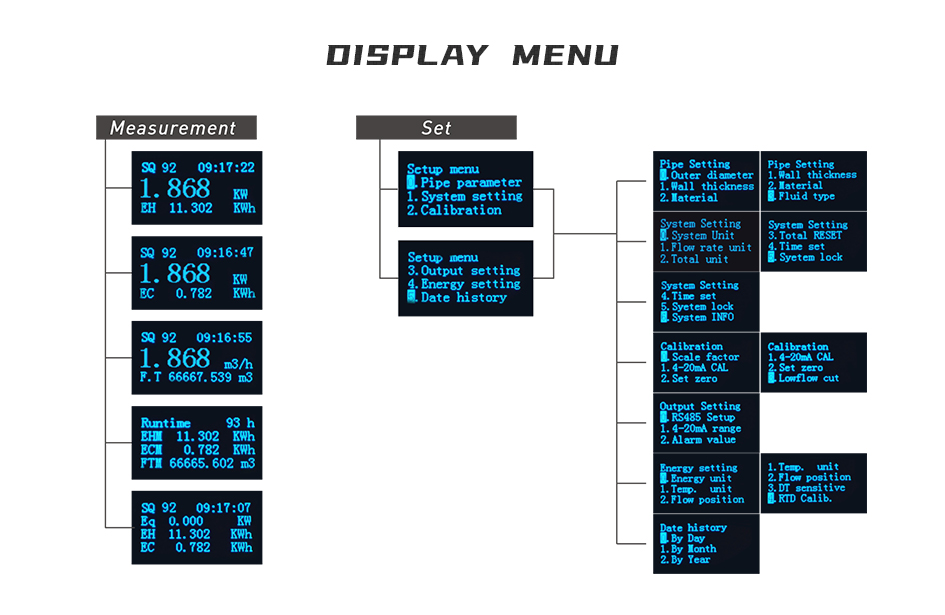

Screen: OLED
Units: 128*64 display screen
Totalizer: Six bit digit
Piper material: Pipe material: stainless steel / carbon steel / copper / zinc-alloy / plastic(PVC, PVDF, PPR, PPH, HDPE, etc) etc.
Case material: Aluminum alloy
Environment temp.: 0℃ - 50℃
RTD measuring temp.: 2℃-105℃
Medium temp.: 0℃ - 50℃
Environment humidity: 0-95% relative humidity, without condensation

IP Grade: IP54
